EDTRACKER ISSUES

myclang

M
hey all.

I apologize if this has been posted. I'm having trouble finding a solution to my problem via search, or google. I have an older ED tracker. I have it setup through the GUI. I set the movement in ED control options. it appears as x and y jostick movements... however that same input is being used by logitech 3d pro. I have no idea how I'm supposed to unbind those two from each other. windows sees the two devices as seperate hardware but ED doesnt. plz help!!


David Oliver

David Oliver
I'm not sure I understand the bit about the Logitech 3D Pro, but the way I have the EdTracker is working is not by assigning it to headlook but by running a program called opentrack, which exposes TrackIR/opentrack protocol to games. In this way, you should leave headlook bindings in ED blank.

I like to use opentrack because it allows for response curve editing.


kardeck

K
David Oliver said:
I'm not sure I understand the bit about the Logitech 3D Pro, but the way I have the EdTracker is working is not by assigning it to headlook but by running a program called opentrack, which exposes TrackIR/opentrack protocol to games. In this way, you should leave headlook bindings in ED blank.

I like to use opentrack because it allows for response curve editing.
Click to expand...

How do you get opentrack to detect Edtracker? I cant seem to get it to move the octopus at all.


David Oliver

David Oliver
kardeck said:
How do you get opentrack to detect Edtracker? I cant seem to get it to move the octopus at all.
Click to expand...

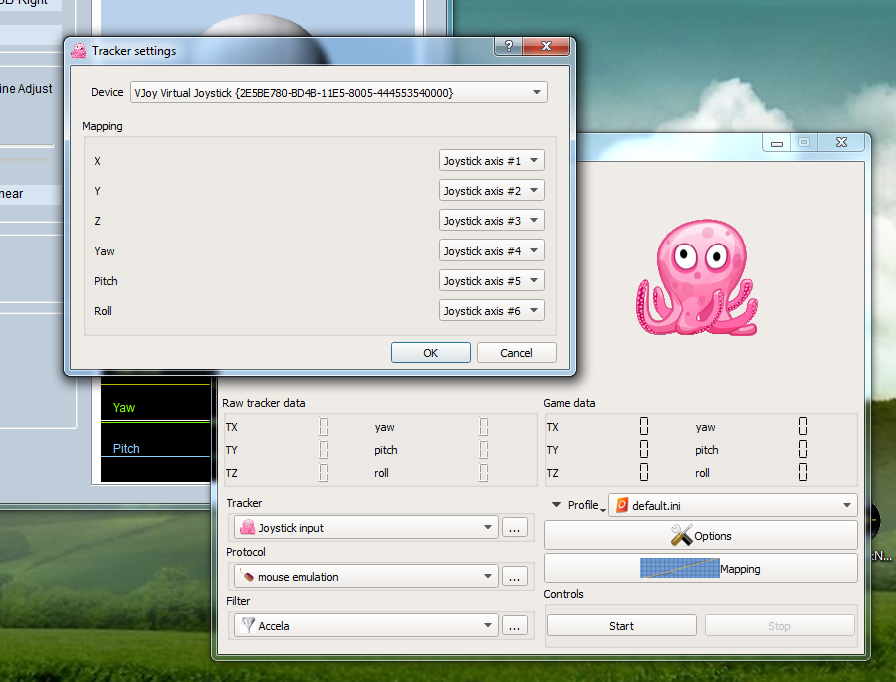

Tracker: Joystick input (Click the "..." button and hopefully you'll be able to select the EdTracker)

Protocol: freetrack 2.0 enhanced

'Start' also needs to be clicked.

Last edited:

kardeck

K

Nothing show in the drop-down except for my X52 and VJoy. The latter shows up as I installed FreeTrackNoIR to see if I could get it working.

Its a fresh install of Windows 7, so is there something else I have forgotten to install?


David Oliver

David Oliver
Does the "EdTracker2" or similar show up in 'Devices and Printers' from the Windows Control Panel? If not, maybe a driver needs to be installed?

Last edited:

kardeck

K

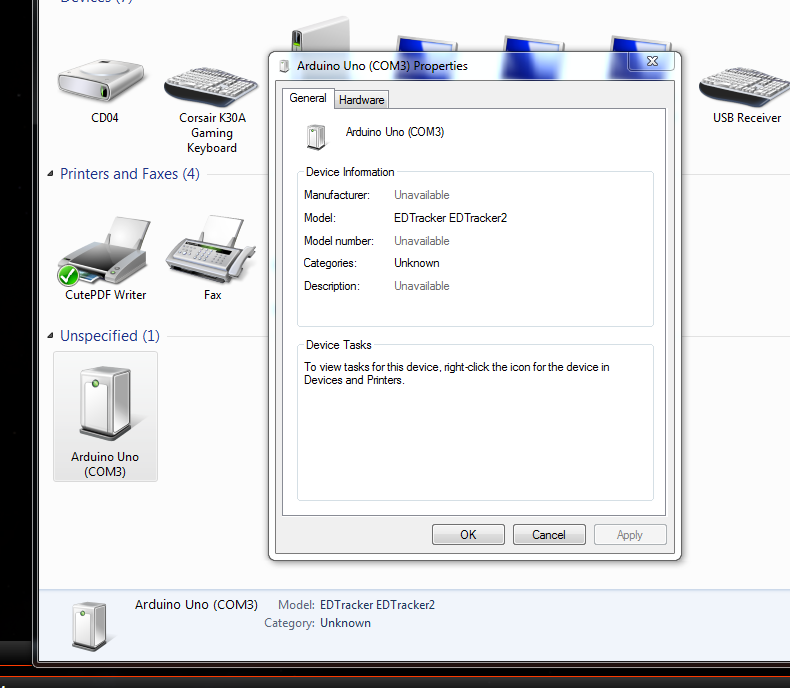

arduino edtracker.PNG

This looks right, and the HT works fine in the GUI from https://www.edtracker.org.uk/.

EDIT :

Just realised it should be Leonardo, not Uno. So I deleted the device and driver and reinstalled with the correct driver, but still wont show up in Opentrack.

EDIT 2: ** SOLVED !! **

So edtracker wont work if plugged into a USB 3 port. Doh! Works fine now in a USB2 port.

Last edited:
