Community Event / Creation The C-Pod: A DIY Command seat (build log)

[ThereIs0nly0ne]

Thanks for all your kind words There's really not a lot to it once you get the hang of a router. I just make sure I measure everything carefully and go at a reasonable pace. Patience and steady progress are the main ingredients.

Edit: Yes, I'll be sure to make a video tour once the project is complete Armante.



[ThereIs0nly0ne]

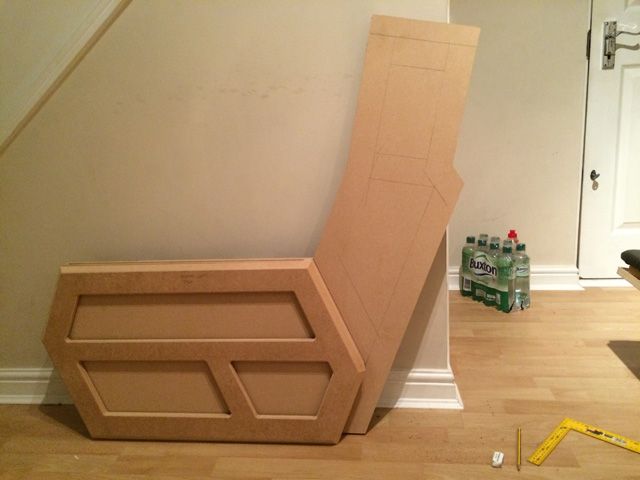

After waking up with a stinking cold this morning, I struggled to get anything done. Feeling a little better now so have managed to cut the remaining side pieces for the side pods:



I'm going to make a start on the inlays for the outer pod faces next ...



[sngerous]

Nice work so far! A lot of detail.

This is my work:
https://forums.frontier.co.uk/showthread.php?t=45662
I hadn't that much resources (tools, space, time) and had to finish it withing my vacation. But anyway i'm pretty satisfied.



[ThereIs0nly0ne]

Nice work so far! A lot of detail.

This is my work:
https://forums.frontier.co.uk/showthread.php?t=45662
I hadn't that much resources (tools, space, time) and had to finish it withing my vacation. But anyway i'm pretty satisfied.

Thanks and yes, I remember commenting what an immersive build it was sngerous. Truly great work , particularly given the time constraints as well! How are you getting on with it?

Finished beveling all the edges and routing out the insets for the materials to sit in:

Beveling:



Inlays:







The depth of the inlay for the wire mesh is about 2mmm whilst that for the rubber and artwork is around 7mm.

Edit: That's it for today ...



[Winterwalker]

Edit: That's it for today ...

A great job as usual .. thanks for posting.

And stay well Cmdr .. celebratory hot toddies all around I think!?



[ThereIs0nly0ne]

A great job as usual .. thanks for posting.

And stay well Cmdr .. celebratory hot toddies all around I think!?

Cheers Winterwalker and thank you for posting! All feedback is very welcome and certainly contributes to me getting things moving

One last picture ...



[Enride]

Cheers Winterwalker and thank you for posting! All feedback is very welcome and certainly contributes to me getting things moving

One last picture ...

Very nice pieces for the pods! You sure make it look easy
Drink som tea and get some rest cmdr, how eager we might be to see progress it can always wait for you to feel better!



[ThereIs0nly0ne]

Very nice pieces for the pods! You sure make it look easy
Drink som tea and get some rest cmdr, how eager we might be to see progress it can always wait for you to feel better!

Thanks Enride, I've opted for a nice glass of port It's really satisfying to watch some basic shapes come to life as it's shaped. Looking forwards to starting the inlays which I may start ... tomorrow

I need to order the acrylic and the vinyl so sit behind the mesh. I still haven't decided on a colour yet - as much as I fancy a bright orange or something similar, I may stick with dark grey or possibly a blood red - not sure. I'm a bit obsessive when it comes to everything in the room matching.



[Sanderson]

Drool.



[ThereIs0nly0ne]

Thanks Sanderson although too much drool ruins MDF

Just trying to get a view on the HOTAS placement. The top of the throttle case should be level with the top of my knee to give a sense of placement. I will be raising the case slightly as it will sit on a platform.



[pigfumbler]

Enjoy the port! those inlay bits look stunning! Thanks for the update a keep up the great work!



[ThereIs0nly0ne]

Enjoy the port! those inlay bits look stunning! Thanks for the update a keep up the great work!

Cheers PF!

First fine ribbed rubber insert complete. Backing board cut:



Rubber cut:



Glued together using this:



In-place:



[ThereIs0nly0ne]

I've completed the second rubber inlay and cut the first section of mesh:



[Enride]

Beautiful!!

May I ask, did yesterdays cold (port) incent you to take the day off work



[ThereIs0nly0ne]

Thanks Enride, I've opted for a nice glass of port It's really satisfying to watch some basic shapes come to life as it's shaped. Looking forwards to starting the inlays which I may start ... tomorrow

Beautiful!!

May I ask, did yesterdays cold (port) incent you to take the day off work

Lol, no It was planned (see above)! Wasn't sure whether I'd be feeling up to it though. I'll likely spend this afternoon figuring out the artwork for the logo - simple is good, I'm going to go for CP-1 at this point ...

Also ordered some acrylic and will be buying some slightly dark/blood red vinyl to sit behind the mesh.



[ThereIs0nly0ne]

Mesh done for both sides:



Upright with throttle:



It's starting to look like something now.

Edit: Ejection seat stickers turned up in the post:



Edit 2: I'm knackered. Going to concentrate on the artwork only this afternoon.



[ThereIs0nly0ne]

I found a nice font - Neuropol X. Artwork/logo will be simple - it looks more military that way imho. I may resize the font a fraction smaller:



It will be black rather than gray, naturally.

Edit: terminatahx looks to have a lovely vector logo for E: D. I may include that in the 'artwork' if he's happy to sent it to me.



[pigfumbler]

That looks absolutely gorgeous! Astounding quality as always



[ThereIs0nly0ne]

Thanks PF Hopefully it'll really start to come together soon.



[Enride]

Thanks PF Hopefully it'll really start to come together soon.

It is! Even unpainted it looks superb, i know im repeating myself but you woodworking is amazing!
